Description
best jtm45 pedal TC Electronic JIMS 45 Preamp – GuitarPusherDual Channel Guitar Preamp Faithfully Recreates the Sound of a 1965 JTM45 in a Pedal with Independent Channel Controls, Pre Post Boost, Optional Cab Sim and Dedicated Outputs for DI and Headphones Product Features Guitar preamp pedal faithfully recreates the tone, touch and feel of a 1965 JTM45 tube amp Two channels with independent gain, volume and EQ controls for classic British rock and blues tones Independent gain controls for Normal and High

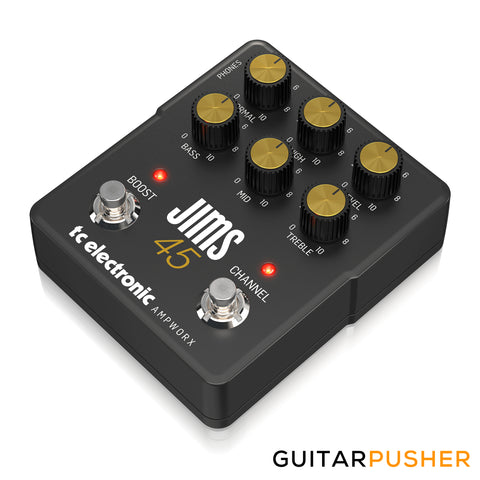

Dual-Channel Guitar Preamp Faithfully Recreates the Sound of a 1965 JTM45 in a Pedal with Independent Channel Controls, Pre/Post Boost, Optional Cab Sim and Dedicated Outputs for DI and Headphones
Product Features
-
Guitar preamp pedal faithfully recreates the tone, touch and feel of a 1965 JTM45 tube amp
-
Two channels with independent gain, volume and EQ controls for classic British rock and blues tones
-
Independent gain controls for Normal and High inputs, just like the real amp with a jumper cable
-
Integrated booster activates 5 dB boost at the kick of a footswitch with Pre/Post option on the back panel
-
Pre boost dialed in to drive the amp model harder and add a distinct mid hump like a classic overdrive pedal
-
Dedicated DI output, equipped with official Celestion 4x12 G12M Creamback cab sim IR, turns your pedalboard into a gig-ready rig direct to PA system or audio interface for recording
-
Dedicated headphone output, equipped with official Celestion 4x12 G12M Creamback cab sim IR, for huge tube amp tones and practice sessions that won’t disturb your neighbors
-
Master presence, set it and forget it, control on the rear panel to tailor your preamp and compensate for darker or brighter rigs and rooms
-
Optional bypass or always on channel change footswitch modes
-
Groundbreaking TC AMPWORX modeling technology provides low latency, huge dynamic range and feels like the real deal
-
Perfect pedalboard-friendly pedal platform takes drive pedals like a champ
The Original Guitar Hero
Jimi Hendrix is widely accepted as one of the world’s most influential guitarists. Was he the best ever? We would make no such claim, as that is an extremely subjective matter, but he was certainly wildly inspiring and the first to truly define the sound of guitar-driven rock.
First and foremost, thanks to his amazing talent, but that talent for playing as well as pushing the envelope of how gear available in the 60’s could be used.
Obviously, his Strat was a key component of his sound, but so was his use of a certain tube amp and fuzz pedals.
As Precise As It Gets
Our passionate and guitar-playing team of engineers set out to faithfully recreate the original amp with the painstaking accuracy and attention to detail that only guitar players with actual hands-on experience with the original amp can achieve.
At the heart of JIMS 45, our AMPWORX modeling technology works its magic, carefully recreating the classic guitar tone that’s the sum of each and every component from the circuit of the original.
The result? The best and most precise digital amp modeling of this famous amp you have ever run your guitar through.
Stack Up on Hard-Rocking Tones
We kept the control layout true to the original to not only give you authentic tone, but also a familiar look that makes you feel right at home right out of the box.
From this classic starting point, you can go classic, modern or just downright nuts. It’s all up to you how you want to tweak JIMS 45, but rest assured that no matter what, you’ll be able to sculpt jaw-dropping guitar tones that are perfect for bending notes as well as minds.
The Cab Ride of Your Dreams
Obviously, the cab speaker is a key component of any combo – JIMS 45 is no exception!
With today’s convolution-based IR technology it is possible to sample the past with great accuracy and authenticity. And we might have done exactly that, only someone else has specialized in this sonic art form – and who would be better at this than the company that has delivered cab speakers for countless classic guitar combos throughout music history: Celestion.
After intensive testing, we decided to integrate the official impulse response of the beloved 4x12 G12M Creamback speaker cab. It truly is a tone match made in heaven.
Ch-ch-ch-channels
When you plug into JIMS 45 for the first time, it’s in the always-on Dual Channel mode. This means you toggle between a green and a red channel. The green channel models the original circuit with the master volume set at 12 ‘o’clock after the tonestack. And the red channel models the original amp’s stock circuit, which didn’t have a master volume control.
If you press BOOST and CHANNEL at the same time, you will change to Bypass mode. Now, JIMS 45 simply works as a stompbox that you can punch in and out whenever you want. The channel that was selected when in Dual Channel mode is the one to be used if you switch to Bypass mode.
Claim Your Presence in the Mix
The presence knob directly replicates the one in the original amp, varying the internal feedback in the power section, which gives you a fine control over its attack and overall clarity. This is a set-and-forget control, global for the pedal, so find the sweet spot that complements your rig, and you are all set.
Boost Your Tone. Not Your Ego.
You can use the Boost circuit in two different ways. If you set it in the PRE mode, it will be like having a vintage tubescreamer in front of the amp – the amp will simply be driven even harder when you kick in the Boost.
And if you go for the POST mode, the boost circuit is patched in after the amp, which means that the core of your tone remains unchanged – it just gets louder.
Three Ways Out
Your guitar signal can exit JIMS 45 in three different ways. The DI output includes the cab sim and is ideal if you go directly to a PA system, or if you record through an audio interface.
The OUT jack does not include the cab sim, which is useful for when you go to a combo or an amp with a cab, or when inserting the pedal in the FX Loop on an amplifier.
Finally, the HEADPHONES jack includes the cab sim to give you the perfect silent rehearsal scenario.
Specification
Connectors
| Input |
1 x ¼" TS, unbalanced |
| Input impedance |
>1 MΩ |
| Output |
1 x ¼" TRS, balanced with ground sensing* |
| Direct out (cab sim) |
1 x ¼" TRS, balanced with ground sensing* |
| Output impedance |
1 kΩ |
| Headphones |
1 x 1/8" TRS, stereo |
| Headphones impedance range |
>32 Ω |
| USB port |
Mini-B USB connector |
Controls
| Front panel |
NORMAL, HIGH, LEVEL, BASS, MID, TREBLE |
| Top panel |
PRESENCE, BOOST switch (PRE / POST) |
| Footswitches |
BOOST, CHANNEL (bypass) |
System
| Speaker and cab emulation impulse response |
Celestion G12M Creamback, |
| Bypass |
Buffered bypass |
* Standard, unbalanced TS (mono) cables will work with these connections, but for longer cable runs or when interfacing with balanced equipment like soundcards, mixers, and so on, balanced TRS cables will give much better noise suppression.
